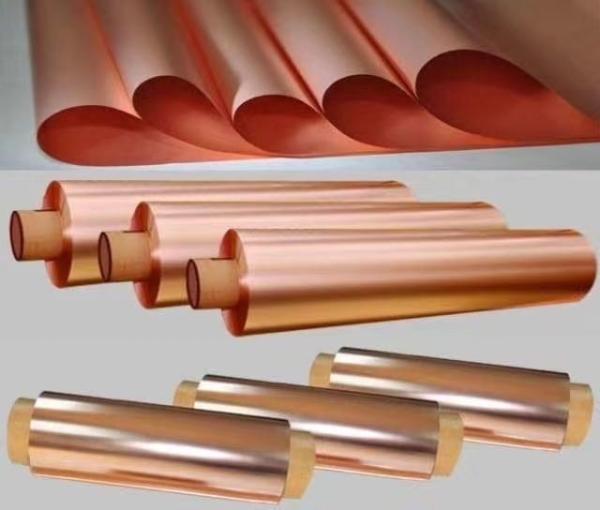

Ultra Thin Copper Thin Sheet For PCB / FPC 500 - 5000 Meter Length Per Roll

JIMA Copper
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Ultra Thin Copper Thin Sheet For PCB / FPC 500 - 5000 Meter Length Per Roll

Brand Name : JIMA

Model Number : RACULP

Certification : SGS, ISO,Reach, RoHS

Place of Origin : china

MOQ : 100kg

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 1500 Ton per month

Delivery Time : 5- 15days

Packaging Details : wooden carton

Application : phone FPC PCB mobile phone

thickness : 6um 0.006mm 6micron

Standard : IPC-4562,IPC9TM-650

Width range : 100~620mm

thickness toleranc : within +/-0.00054mm

Roughness : under 0.025um

Width standard  tolerance : +/-1.5mm

roll weight : 50kgs~350kgs

Contact Now

6um 0.006mm 6micron ultra thin rolled copper foil for phone FPC PCB mobile phone

Quickly details

Minimum thicknes 6micron,6um,0.006mm
Width range 100~620 mm
Length 500-5000 Meter
Features


Excellent uniformity and infiltration.
double shiny side ,superior rupture endurance.
Surface:No indentation​,No scratches​,No wrinkles​,No tear​ and other defect.
thickness standard tolerance:within +/-0.00054mm
Roughness​:0.025um
Width standard tolerance:+/-1.5mm

Packing standard export sea wooden box package
Cu Content (%) Above99.8%
ID of roll 76mm/152mm/ custom
roll weight

50kgs~350kgs

Application


1. Mobile,phone ,cellphone material
2. FPC,Flexible Printed Circuit
3.lithium battery
4. High Frequency conductive PCB
5. Electromagnetic Shielding Materials
6. Computer


Compare between CA copper foil and ED copper foil
. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
. Density: rolled copper foil higher density, the surface is relatively smooth,

conducive to the production of printed circuit board after the rapid transmission of the signal,

so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
Technical data sheet of rolled copper foil

Thickness

6/7/8/9/10/12um

Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

Remark: we can accept customization as per your request, Standard Width,620(±1)mm

FAQ:
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz
Q6. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing
Q11. Can you provide COA?
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Ultra Thin Copper Thin Sheet For PCB / FPC 500 - 5000 Meter Length Per Roll
Ultra Thin Copper Thin Sheet For PCB / FPC 500 - 5000 Meter Length Per Roll
